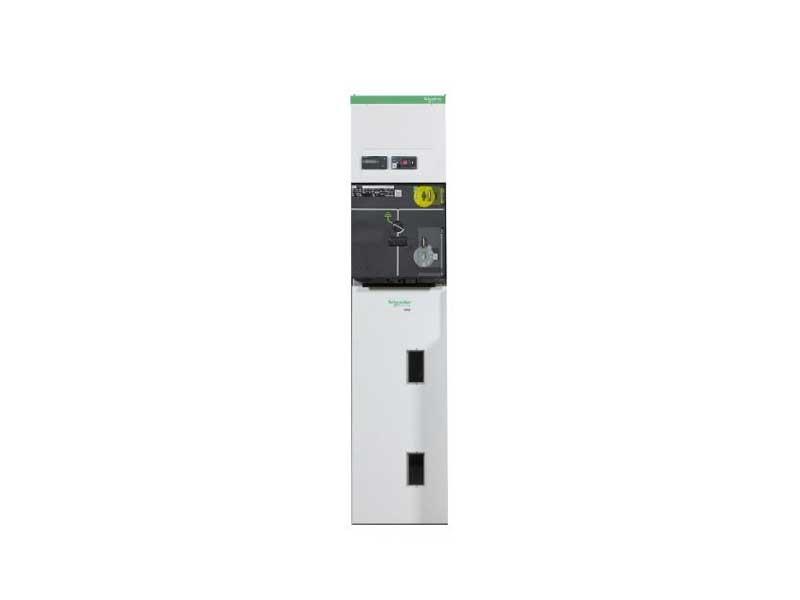

Cubicle, SM6-24, GIM 500mm casing cubicle by Schneider Electric

Giá bán: Mời liên hệ

Nhãn Green Premium^TM là cam kết của Schneider Electric trong việc mang lại các sản phẩm với hiệu suất môi trường tốt nhất. Green Premium hứa hẹn tuân thủ các quy định mới nhất, minh bạch về tác động môi trường, cũng như các sản phẩm thông minh và ít CO₂.

Tags:

Sl:

Báo giá Liên hệ báo giá

Thông tin sản phẩm

Thông số kỹ thuật Cubicle, SM6-24, GIM 500mm casing cubicle by Schneider Electric

Main
Range of product	SM6-24
Technology type	Air insulated switchgear SF6 gas breaking technology
Device short name	GIM
Product or component type	Cubicle
Device application	Intermediate busbar unit
Remote control type	Without
Internal arc classification	A-FL
Internal arc protection	12.5 kA 0.7 s
Rated frequency (fr)	50/60 Hz
Rated voltage (Ur)	24 kV
Rated lightning impulse withstand voltage (Up)	125 kV peak
Rated supply voltage (Us)	15...20 kV
Rated current [Ik]	400 A
Rated short-time withstand current (Ik)	12.5 kA rms 1 s
Standards	IEC 62271-102 IEC 62271-200 NF C 13-200

Complementary
Bus rated current	400 A
Local signalling	Without
Device composition	Intermediate busbar unit
Mass	110 kg
Height	1600 mm
Width	500 mm
Depth	840 mm

Environment
Ambient air temperature for operation	-5…40 °C
Ambient air temperature for storage	-40…70 °C
IP degree of protection	IP2X
Vibration resistance	0.5 gn horizontal class 2 0.4 gn vertical class 2
Operating altitude	<= 1000 m
