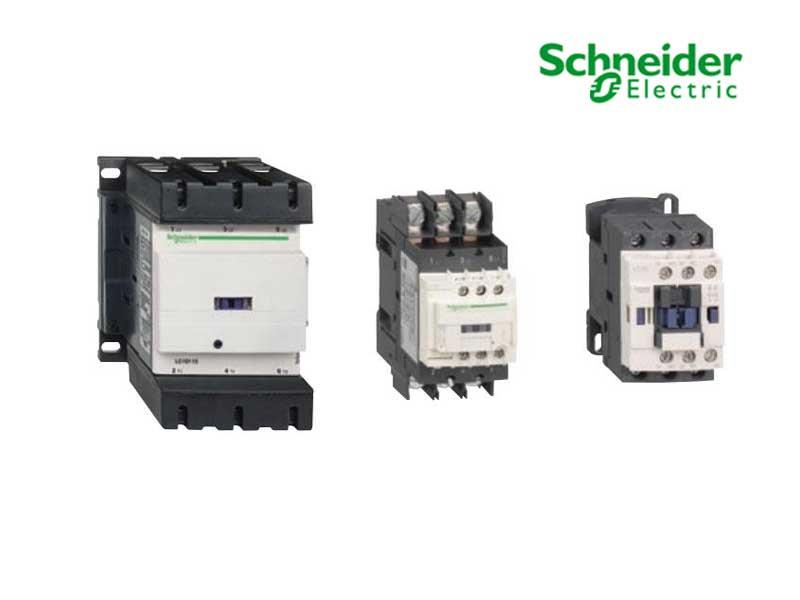

Khởi động từ TESYS D 9-150A by Schneider Electric

Giá bán: Mời liên hệ

KHỞI ĐỘNG TỪ TESYS D 9-150A

• Dùng điều khiển động cơ lên đến 75kW, loại AC1, AC3

• Điện áp điều khiển cho cuộn dây: AC, DC, LC

• Tích hợp 2 tiếp điểm phụ: 1NO, 1NC

• Độ bền cơ khí và độ bền điện cao.

Tags:

Sl:

Báo giá Liên hệ báo giá

Thông tin sản phẩm

The TeSys™ Deca Control Series of contactors (formerly known as TeSys D) provides high reliability and performance in a modern, modular approach. TeSys Deca contactors are UL approved to 100 hp 480 V and 160 amperes continuous current. In addition, they provide a modern appearance with new features such as multi-standard screw terminals that accommodate flat, Phillips and Pozidriv screwdrivers, as well as the new UL60335 approved plastics with greater endurance in the presence of heat or fire.

TeSys Deca Contactors—3 or 4 Pole, Screw Terminal Connections

Maximum Horsepower Ratings						Maximum Current (A)		Continuous Current Rating (A)	No. of Poles		Instantaneous Auxiliary Contacts		Catalog Number
Single-Phase		Three-Phase				Inductive AC3	Resistive AC1		N.O.	N.C.	N.O.	N.C.
115 V	230 V	200 V	230 V	460 V	575 V	Inductive AC3	Resistive AC1		N.O.	N.C.	N.O.	N.C.
1/3	1	2	2	5	7.5	9	20	25	3	0	1	1	LC1D09
—	—	—	—	—	—	—			4	0			LC1DT20
—	—	—	—	—	—	—			2	2			LC1D098
1/2	2	3	3	7.5	10	12	25	25	3	0	1	1	LC1D12
—	—	—	—	—	—	—			4	0			LC1DT25
—	—	—	—	—	—	—			2	2			LC1D128
1	3	5	5	10	15	18	32	32	3	0	1	1	LC1D18
—	—	—	—	—	—	—			4	0			LC1DT32
—	—	—	—	—	—	—			2	2			LC1D188
2	3	7.5	7.5	15	20	25	40	40	3	0	1	1	LC1D25
—	—	—	—	—	—	—			4	0			LC1DT40
—	—	—	—	—	—	—			2	2			LC1D258
2	5	10	10	20	25	32	50	50	3	0	1	1	LC1D32
2	5	10	10	20	25	38	50	50	3	0	1	1	LC1D38
3	5	10	10	30	30	40	60	60	3	0	1	1	LC1D40A
—	—	—	—	—	—	—	60	60	4	0	0	0	LC1DT60A
3	7.5	15	15	40	40	50	80	70	3	0	1	1	LC1D50A
5	10	20	20	40	50	65		80	3	0	1	1	LC1D65A
—	—	—	—	—	—	—		80	4	0	0	0	LC1DT80A
7.5	15	25	30	60	60	80	125	110	3	0	1	1	LC1D80
—	—	—	—	—	—	—			4	0	0	0	LC1D80004
—	—	—	—	—	—	—			2	2	0	0	LC1D80008
7.5	15	25	30	60	60	95			3	0	1	1	LC1D95
—	—	30	40	75	100	115	200	160	3	0	1	1	LC1D115
—	—	40	50	100	125	150			3		1	1	LC1D150
—	—	—	—	—	—	—			4		0	0	LC1D115004

TeSys Deca Coil Voltage Codes

Contactor	D09–D38	D40A-D65A	D80–D150
AC 50/60 Hz
24 V	B7	B7	B7
110 V	F7	F7	F7
120 V	G7	G7^[3]	G7
240 V	U7	U7	U7
480 V	T7	T7	T7
AC/DC
24–60 V	BNE	BNE	—
48–130 V	EHE	EHE	—
100–250 V	KUE	KUE	—
DC
24 V	BL	BBE	BD

Definite Purpose Ratings, 3-Phase, Breaking All Lines, 100,000 Cycles
(Hermetic Refrigeration Compressor)

Device	FLA	LRA
Device	FLA	240 V	480 V	600 V
LC1D09 (AC coil only)	9	54	45	36
LC1D12 (AC coil only)	12	72	60	48
LC1D18 (AC coil only)	18	108	90	72
LC1D25 (AC coil only)	25	150	125	100
LC1D32 (AC coil only)	32	192	160	128
LC1D40A	40	240	200	160
LC1D50A	50	300	250	200
LC1D65A	65	390	325	260
LC1D80	75	450	375	300
LC1D115	115	690	575	460
LC1D150	150	900	750	600
