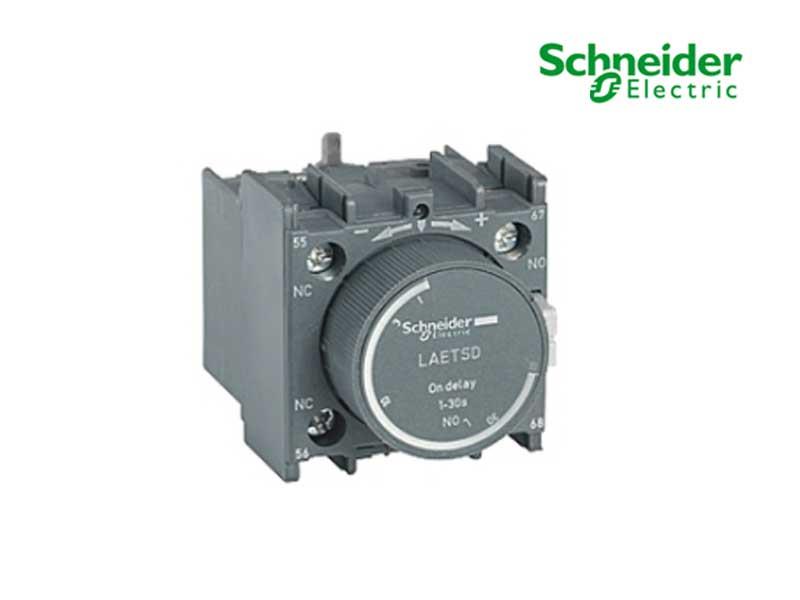

Rơ le thời gian LAETSD by Schneider Electric

Giá bán: Mời liên hệ

Thông tin sản phẩm Rơ le thời gian LAETSD by Schneider Electric:

- Tên sản phẩm: Tiếp điểm phụ Gắn ở mặt trước

- Mã hàng: LAETSD

- Tiếp Điểm: 1NC 1NO

- Rơle thời gian loại: On - delay

- Khoảng cài đặt: 1...30s

Tags:

Sl:

Báo giá Liên hệ báo giá

Thông tin sản phẩm

The time delay auxiliary contact block for EasyPact TVS LC1E contactors. It provides 1NO+1NC contacts rated up to 10A 690V AC and connected by screw clamps terminals. Easy to mount on front by clip-on, it procures high reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach).

Specifications Time delay block, EasyPact TVS, on delay, 1 NO + 1 NC

Main
Range	EasyPact
Device short name	LAET
Product or component type	Time delay auxiliary
Device application	Signalling
Colour	Grey (RAL 7011)

Complementary
Range compatibility	EasyPact (EasyPact TVS) LC1E
Mounting location	Front
Auxiliary contacts operation	On-delay contact
Pole contact composition	1 NO + 1 NC
[Ui] rated insulation voltage	690 V - for control circuit conforming to IEC 60947-5-1
[Ue] rated operational voltage	<= 690 V
[Ith] conventional free air thermal current	8 A (at 60 °C)
Irms rated making capacity	140 A AC conforming to IEC 60947-5-1
[Icw] rated short-time withstand current	100 A - 1 s 120 A - 500 ms 140 A - 100 ms
Protection type	GG fuse 10 A
Mechanical durability	10 Mcycles
Minimum switching current	5 mA
minimum switching voltage	17 V
Non-overlap time	1.5 ms on energisation no overlap between NC and NO contact 1.5 ms on de-energisation no overlap between NC and NO contact
Time delay range	1...30 s
Insulation resistance	> 10 MOhm
Connections - terminals	Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end
Net weight	0.06 kg

Environment
Environmental characteristic	Standard environment
Standards	IEC 60947-5-1
Product certifications	GOST
IP degree of protection	IP20 conforming to IEC 60529
Protective treatment	TH conforming to IEC 60068
Ambient air temperature for operation	-5…55 °C
Ambient air temperature for storage	-60…80 °C
Operating altitude	3000 m without derating

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4.8 cm
Package 1 Width	5.2 cm
Package 1 Length	6.5 cm
Package 1 Weight	82 g
Unit Type of Package 2	S03
Number of Units in Package 2	140
Package 2 Height	30 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	12.097 kg
Package 3 Height	30 cm
