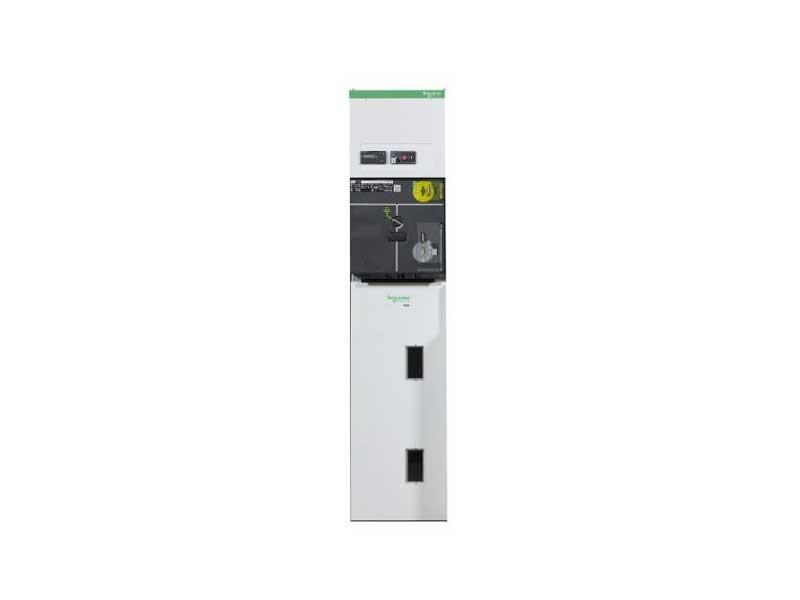

SM6-24 CM, TP 20KV, Micom P923 cubicle by Schneider Electric

Giá bán: Mời liên hệ

Nhãn Green Premium^TM là cam kết của Schneider Electric trong việc mang lại các sản phẩm với hiệu suất môi trường tốt nhất. Green Premium hứa hẹn tuân thủ các quy định mới nhất, minh bạch về tác động môi trường, cũng như các sản phẩm thông minh và ít CO₂.

Tags:

Sl:

Báo giá Liên hệ báo giá

Thông tin sản phẩm

Thông số kỹ thuật SM6-24 CM, TP 20KV, Micom P923 cubicle by Schneider Electric

Main
Range of product	SM6-24
Technology type	Air insulated switchgear SF6 gas breaking technology
Device short name	CM
Product or component type	Cubicle
Device application	Metering
Power grid telecontrol system	Without
Internal arc classification	A-FL
Internal arc protection	12.5 kA 0.7 s
Rated frequency (fr)	50/60 Hz
Rated voltage (Ur)	24 kV
Rated lightning impulse withstand voltage (Up)	125 kV peak
Rated supply voltage (Us)	20 kV
Rated current [Ik]	50 A
Rated short-time withstand current (Ik)	12.5 kA rms 1 s
Standards	IEC 62271-102 IEC 62271-200 NF C 13-100

Complementary
Primary voltage transformer	20 kV/V3
Bus rated current	400 A
Type of operator	CS manual
Provided equipment	2 x small box low voltage, with fuse disconnector/Box 1 x heating resistor 220 V AC 50 W voltage transformer compartment 3 x miniature circuit breaker 2 A, 4P 1 x fuse disconnector 10 A, for auxiliaries protection
Fuse type	UTE Solefuse 6.3 A 3 fuses supplied
Device composition	Disconnector Earthing switch
Auxiliary contact composition	1 NO + 2 NC disconnector 1 O/C blown fuse
Interlocking type	Mechanical (between switch disconnector, earthing switch and LV secondary fuses of the VTs)
Mass	190 kg
Height	2050 mm (total) 450 mm low voltage control compartment
Width	375 mm
Depth	940 mm

Environment
Ambient air temperature for operation	-5…40 °C
Ambient air temperature for storage	-40…70 °C
IP degree of protection	IP2x
Vibration resistance	0.5 gn horizontal class 2 0.4 gn vertical class 2
Operating altitude	<= 1000 m
